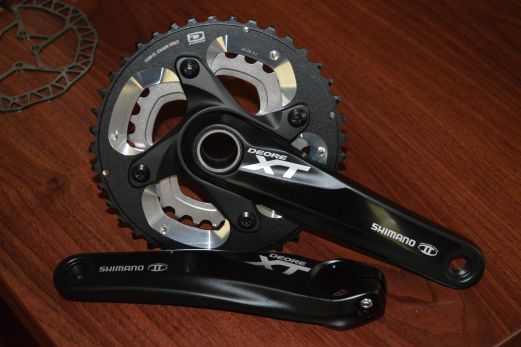

Shimano XT 165mm crankset

Shimano XT 165mm 2x10 crankset

Quick facts:

  • 2 x 10 config with 40t big ring and 28t little ring;

Weight breakdown:

  • left crank arm: 214g;
  • right crank arm (includes integrated spider and axle): 357g;
  • 40t big ring: 80g;
  • big ring chainring bolts (alloy): 8g;
  • 28t granny ring: 35g;
  • granny ring bolts (steel): 12g;
  • XT bottom bracket: 93g;
  • total weight including BB: 806g.

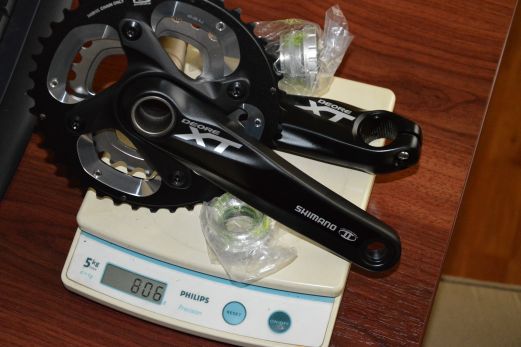

XT 165mm crankset on scale weighed
