DT Swiss 240s / BOR 333 XMD / DT Swiss Revolution Rear Wheel

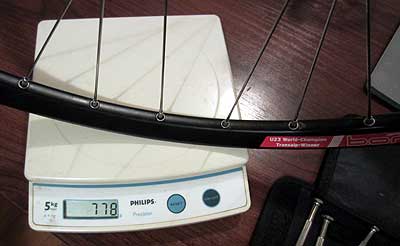

Complete weight: 778g.

Hub data

DT Swiss 240s 6 bolt disc rear:

WL, width from center to left flange34.0
WR, width from center to right flange19.4
dL, left flange diameter57.0
dR, right flange diameter47.4
S, spoke hole diameter2.5

Rim data


Offset spoke bed3mm

Spoke data

DT Swiss Revolution 2.0-1.5-2.0 spokes, 262mm both sides:

crossleft lengthright length

Build notes

262mm spokes were possibly 1mm too short to allow initial spoke wind up with spoke driver bit. Had to back off spokes by hand until 2 threads showing above nipple all round and start tensioning up from there. Spoke ends still finished engaged with nipple heads. Minimal spoke wind-up experienced.

Final tension on drive side 120 kgf. Variation less than 10kgf. Lateral run-out around 0.5mm. Radial run-out 0.5mm.
