Quick facts:

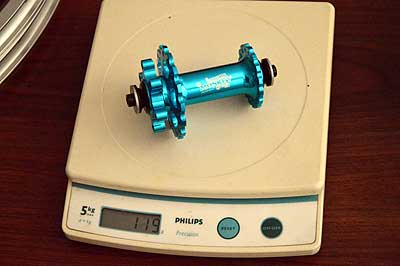

Front hub dimensions (in mm):
| WL, width from center to left flange | 24.0 |
| WR, width from center to right flange | 35.0 |
| dL, left flange diameter | 58.0 |
| dR, right flange diameter | 38.0 |
| S, spoke hole diameter | 2.5 |

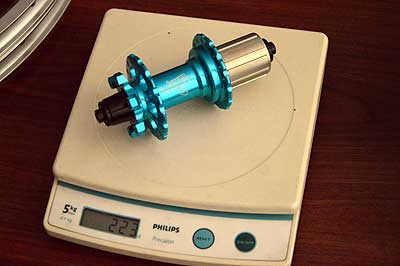

Rear hub dimensions (in mm):
| WL, width from center to left flange | 34.6 |
| WR, width from center to right flange | 22.6 |
| dL, left flange diameter | 58.0 |
| dR, right flange diameter | 51.0 |
| S, spoke hole diameter | 2.5 |

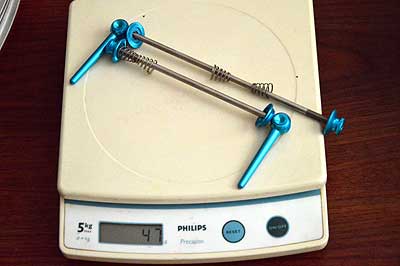

The hubs also come with a really nice set of titanium skewers that weigh 47g for the pair:
Notes
- freehub on these hubs looks a lot like the freehub body on the Kore Durox hubs;
