Stans NoTubes 3.30 Ti front hub

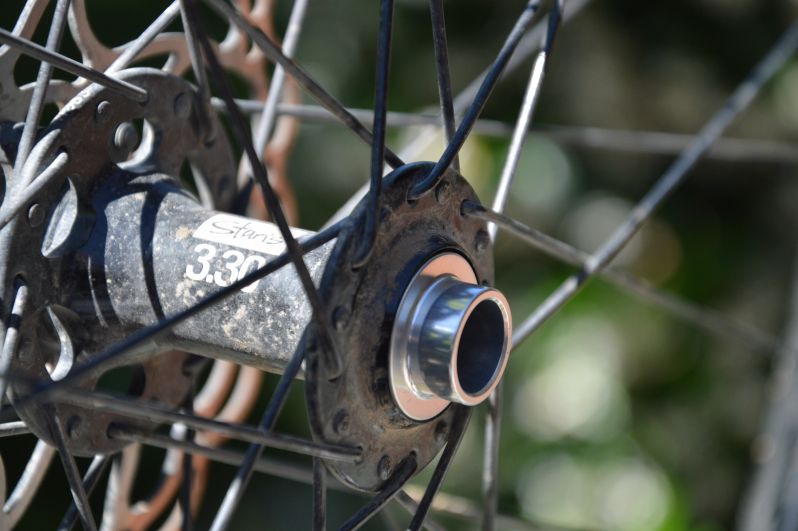

Stans 3.30 Ti front hub with 15mm end cap fitted

Bearings

15mm x 28mm x 7mm 6902 bearings.

Convertible to 15mm?

Convertible to 15mm thru axle using Stans 15mm end caps.

15mm end caps

Dimensions:

  • width: 13mm;
  • inner diameter: 15mm (of course);
  • outer diameter at fork dropout: 19mm;
  • outer diameter at bearing seat:  27.5mm;
  • o-ring groove from ouer flange: 10.5mm.

Notes:

  • End caps are held in place when axle removed by o-rings. O-rings form outer seal but with axle installed do not rub on hub shell.
