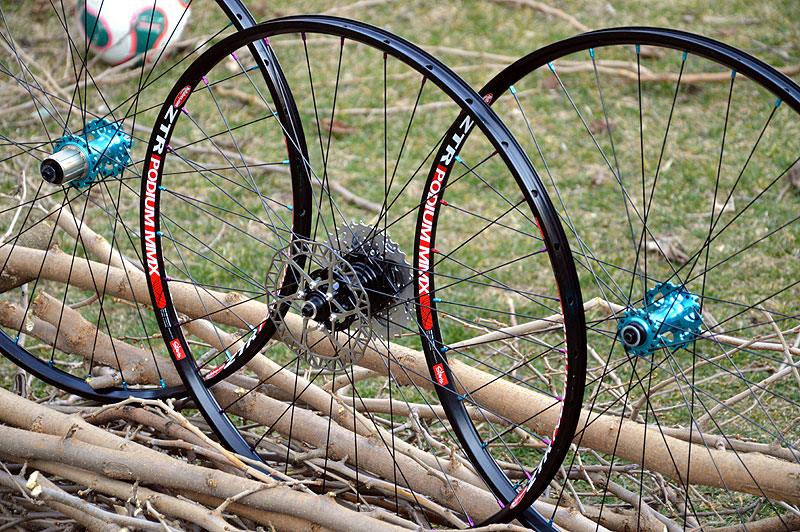

I re-used the hubs from my daughter's 24" wheels when she out-grew them and built her a set of 26" wheels using DT Swiss Revolution (2.0/1.5mm) spokes and Stans No Tubes Podium MMX rims.
Components:
- Circus Monkey HDW2 front hub;
- Circus Monkey HDW3 rear hub;
- Podium MMX 32 hole rim;
- DT Swiss Revolutions spokes, double butted 2.0mm / 1.5mm spokes.
Total weight: 1246g.
Hub data
Front hub:
| WL, width from center to left flange | 24.0 |
| WR, width from center to right flange | 35.0 |
| dL, left flange diameter | 58.0 |
| dR, right flange diameter | 38.0 |
| S, spoke hole diameter | 2.5 |
Rear hub:
| WL, width from center to left flange | 34.6 |
| WR, width from center to right flange | 22.6 |
| dL, left flange diameter | 58.0 |
| dR, right flange diameter | 51.0 |
| S, spoke hole diameter | 2.5 |
Spoke length calculations
Front wheel:
| cross | left length | right length |
| 0 | 242.9 | 254.2 |
| 1 | 245.4 | 255.7 |
| 2 | 252.2 | 260.0 |
| 3 | 262.1 | 266.4 |
| 4 | 273.3 | 273.6 |
Rear wheel:
| cross | left length | right length |
| 0 | 244.2 | 246.3 |
| 1 | 246.6 | 248.4 |
| 2 | 253.4 | 254.4 |
| 3 | 263.3 | 263.0 |
| 4 | 274.5 | 272.9 |
Note: all values in mm.
